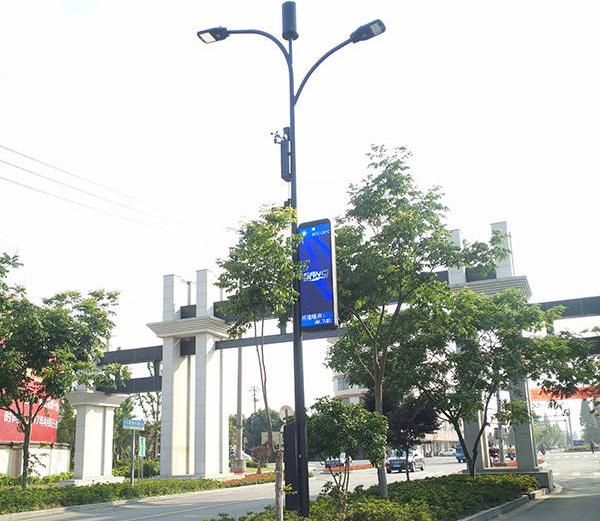

The multifunction intergrated pole also called smart pole, combined with the different function in the pole, such as lighting, 5G WIFI, CCTV surveillance, broadcasting, information publishing, environmental monitoring, charging system, SOS alarm, remote control and etc. on request.
Smart Pole General Recommend function & Parameter
| Pole recommend Height (m) | 8m | 10m | 12m |
| Pole Diameter (mm) | 200/300 | 240/340 | 280/380 |
| Pole Thickness (mm) | 6/8 | 8/10 | 10/12 |
| Pole Square Flange (mm) | 500-600 | 700-800 | 800-1000 |
| Arm length (m) | 4-6 | 6-10 | 8-16 |
| Arm Diameter (mm) | 100/200 | 100/240 | 120/320 |
| Arm Thickness (mm) | 4/5 | 5/6/8 | 6/8/10 |
Multifunction Intergrated Pole Description
1. Smart pole surface coating uses high-quality polyester plastic powder, which is resistant to strong ultraviolet rays, suitable for coastal cities and heavy salt areas, and the average thickness of the plastic layer is not less than 80 microns.
2. Smart pole production procedure: melting active gas shielded welding, AWS ER70S-6 welding wire, indoor welding, reliable welding material quality, crack resistance, and small welding deformation.
3. Production Capability: 5000pcs/month
4. Lifespan: more than 30 years.
5. Multi function pole accessories: ground cage, bolts, nuts, gaskets, ladder, wires and cables, etc.
Multifunction Intergrated Pole Customization:
1. Multifunction intergrated pole general characteristics: the pole height, function optional, shape and thickness, the light style part according to customer request.
2. Pole material: Steel S235 and Steel S355.
3. Smart pole surface treatment: Hot-dip galvanizing, spraying plastics, and painting. For spraying plastic and painting, thickness and different color can be chosen.
Free design:
Except the general characteristics and function, we can help our customers to design their own products, customers only need to put forward their use needs and provide the local climate and site conditions, we can design the product for free.
Especially For different countries, the weather and seismic data must be taken into account in the designing to ensure the durability and stability of the smart pole.
International Certificates:
All the smart pole use international standard steel, the material complies with the provisions of EU standard and the welding procedure specification (WPS) in accordance with EN1090 requirements.
International certificates: ISO 9001, 1SO14001, ISO45001, EN1090, EN12899-1 and CE.
Installation for multifunction intergrated pole:
The multifunction intergrated pole is installed by base cage, bolt and flange. It is easy-installation and we also can provide the installation guide on request. If you also need us to provide technical team to install on site, it's workable, and we charge only the labor cost.
Maintenance:
The smart pole is produced with quality material, meet with outdoor standard, usually no need to make special maintenance, if need maintenance you can by lift truck.
